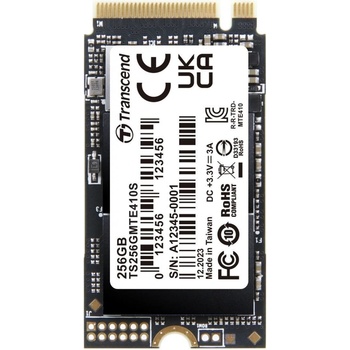

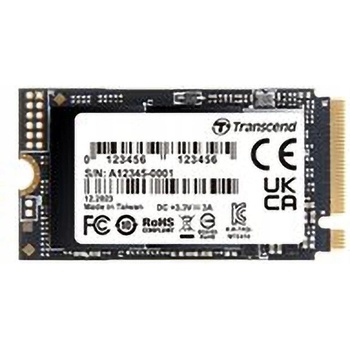

Transcend MTE410S 256GB, TS256GMTE410S

Transcend MTE410S 256GB SSD disk M.2 2242, NVMe PCIe Gen4 x4 3300MB/s R 1600MB/s W

Transcend's PCIe Gen 4x4 M.2 SSD MTE410S has a compact form factor and high-quality 3D NAND flash, making it easy to upgrade Ultrabooks, lightweight notebooks, tablets, and handheld gaming PCs. It is designed with multiple firmware optimization technologies, such as SLC caching and the LDPC ECC mechanism, which help to improve both storage reliability and extend the drive lifespan. The MTE410S is a fantastic choice for boosting the performance of modern work platforms.

Featuring a high-speed PCIe Gen 4x4 interface, Transcend's MTE410S SSD delivers lightning-fast transfer speeds. Transcend's MTE410S offers optimal peak performance without consuming minimal power in your ultra-thin devices.

At just 42mm in length, Transcend's MTE410S SSD is ideal for Ultrabooks, lightweight notebooks, tablets, and handheld gaming PCs. With a single-sided design, Transcend's MTE410S SSD gives your device a much-needed boost while being space-efficient!

Appearance

Dimensions Single-sided 42 mm x 22 mm x 2.23 mm (1.65" x 0.87" x 0.09")

Weight 5 g (0.18 oz)

Type

M.2 2242

Interface

Bus Interface

NVMe PCIe Gen4 x4

Storage

Flash Type 3D NAND flash

Capacity 256 GB

Operating Environment

Operating Temperature 0°C (32°F) ~ 70°C (158°F)

Operating Voltage 3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark) 256 GBUp to 3,300/1,600 MB/s 4K Random Read/Write (IOmeter) 256 GBUp to 190,000/370,000 IOPS

Terabytes Written (TBW) 256 GB150 TBW

Mean Time Between Failures (MTBF) 2,000,000 hour(s)

Drive Writes Per Day (DWPD) 0.33 (5 yrs)

Note

Speed may vary due to host hardware, software, usage, and storage capacity.

The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Terabytes Written (TBW) expresses the endurance under the highest capacity.

Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

Warranty

Certificate

CE/UKCA/FCC/KC/RCM

Warranty

Five-year Limited Warranty

Warranty Policy

Please click here for more information about the Transcend Warranty Policy.

Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.

System Requirement

Operating System

Microsoft Windows 7 or later

Linux Kernel 2.6.31 or later

Note

Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.

Technology

S.M.A.R.T.

Technology

S.M.A.R.T.

Yes

Advanced Garbage Collection

Yes

RAID Engine

Yes

LDPC Coding

Yes

DRAM Cache

No
